Hot Spot Collection
Relay
Full-Size with a Lounge
Starting at $12,499 MSRP
or as low as $259/mo with financing
Seating
6 Adults
Jets
40
Dimensions
84" × 84" × 36"
Water Capacity
340 gal

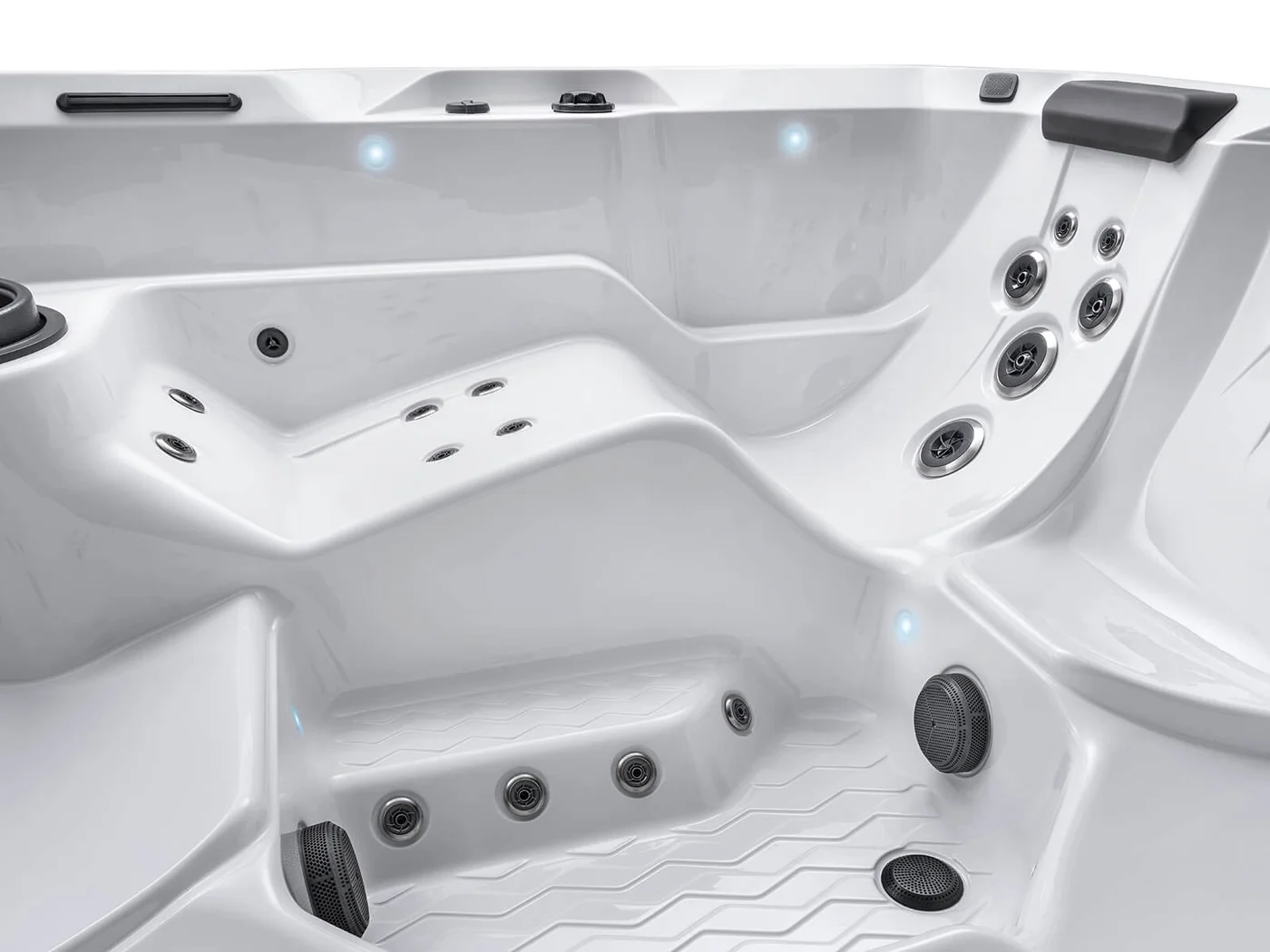

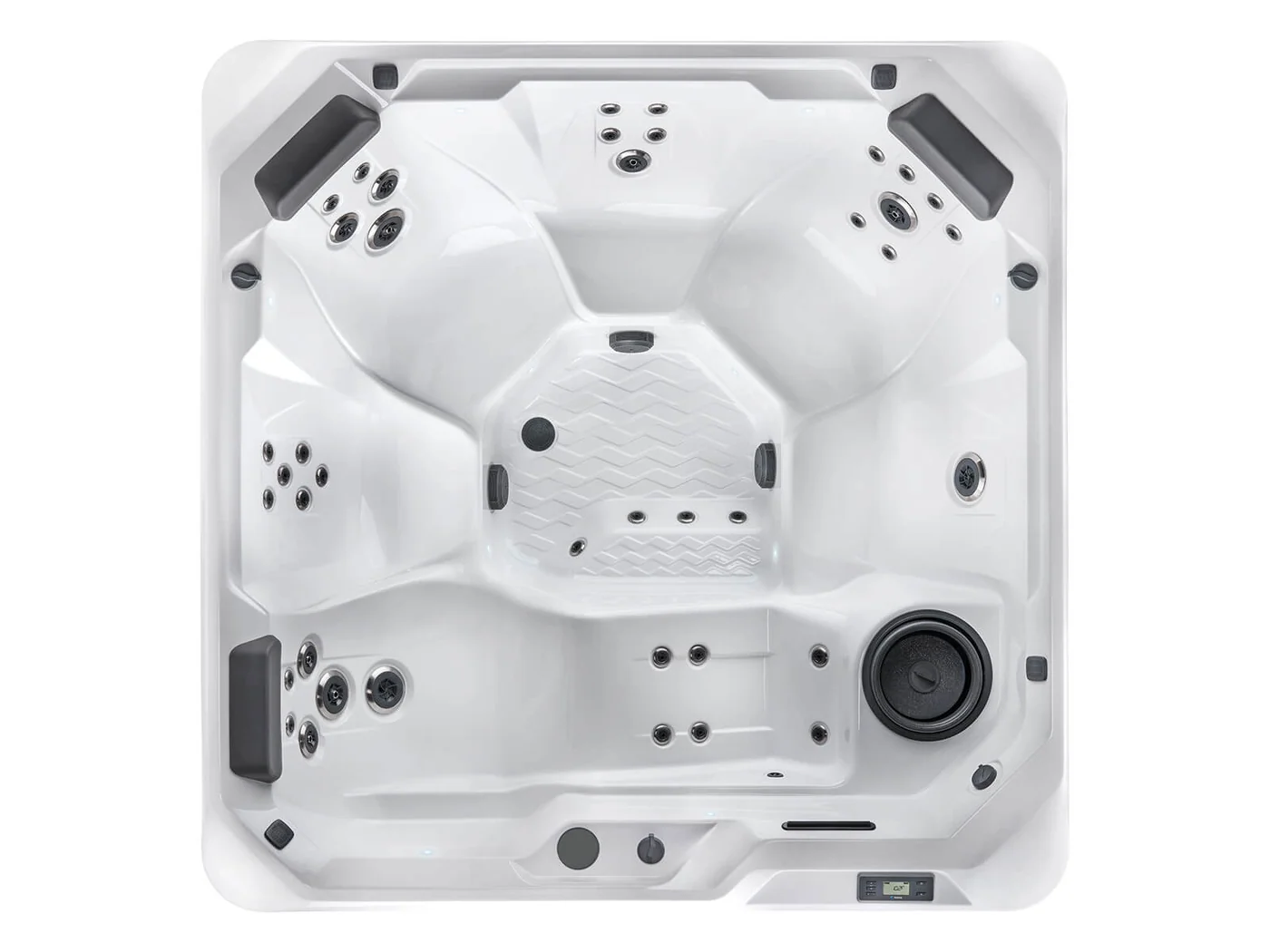

The Relay matches the Rhythm's 40-jet power in a 6-person layout built around a full-length lounge seat. Same footprint, same pumps — designed for stretching out and soaking deep.
If you want the full Hot Spot experience with a lounger for head-to-toe hydrotherapy, this is the one.
Based on 120+ Google Reviews

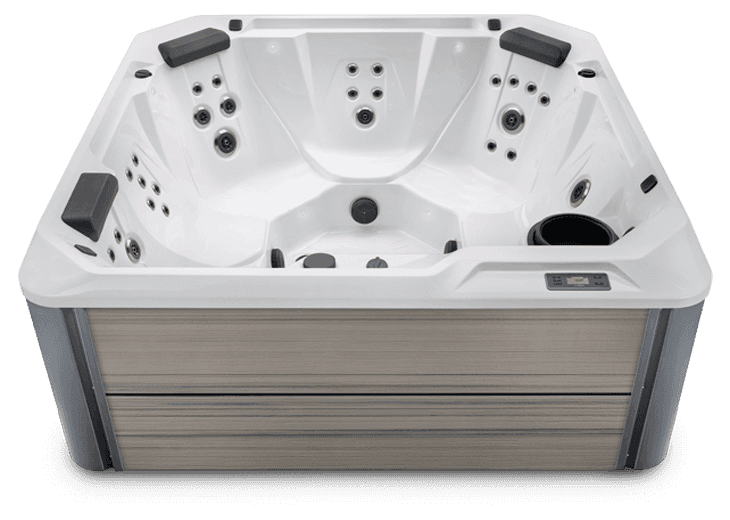

Customize Your Relay
Choose your shell and cabinet color combination
Shell Color
Alpine White
Cabinet Color
Almond
Features & Technology

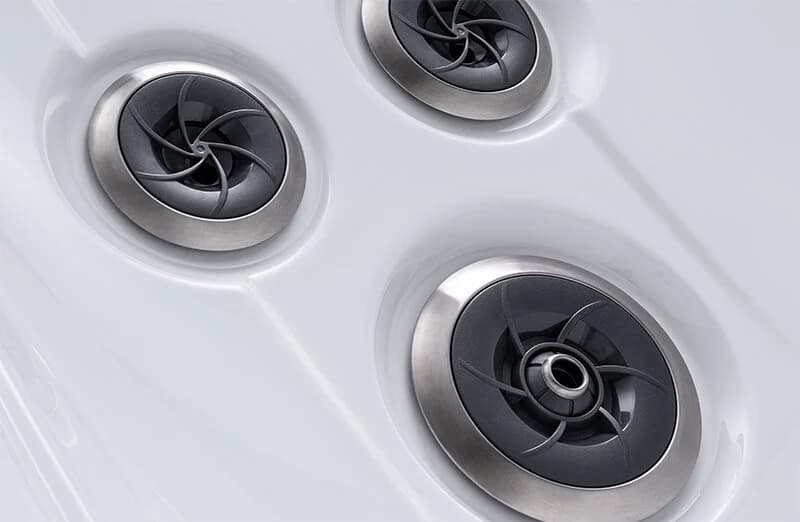

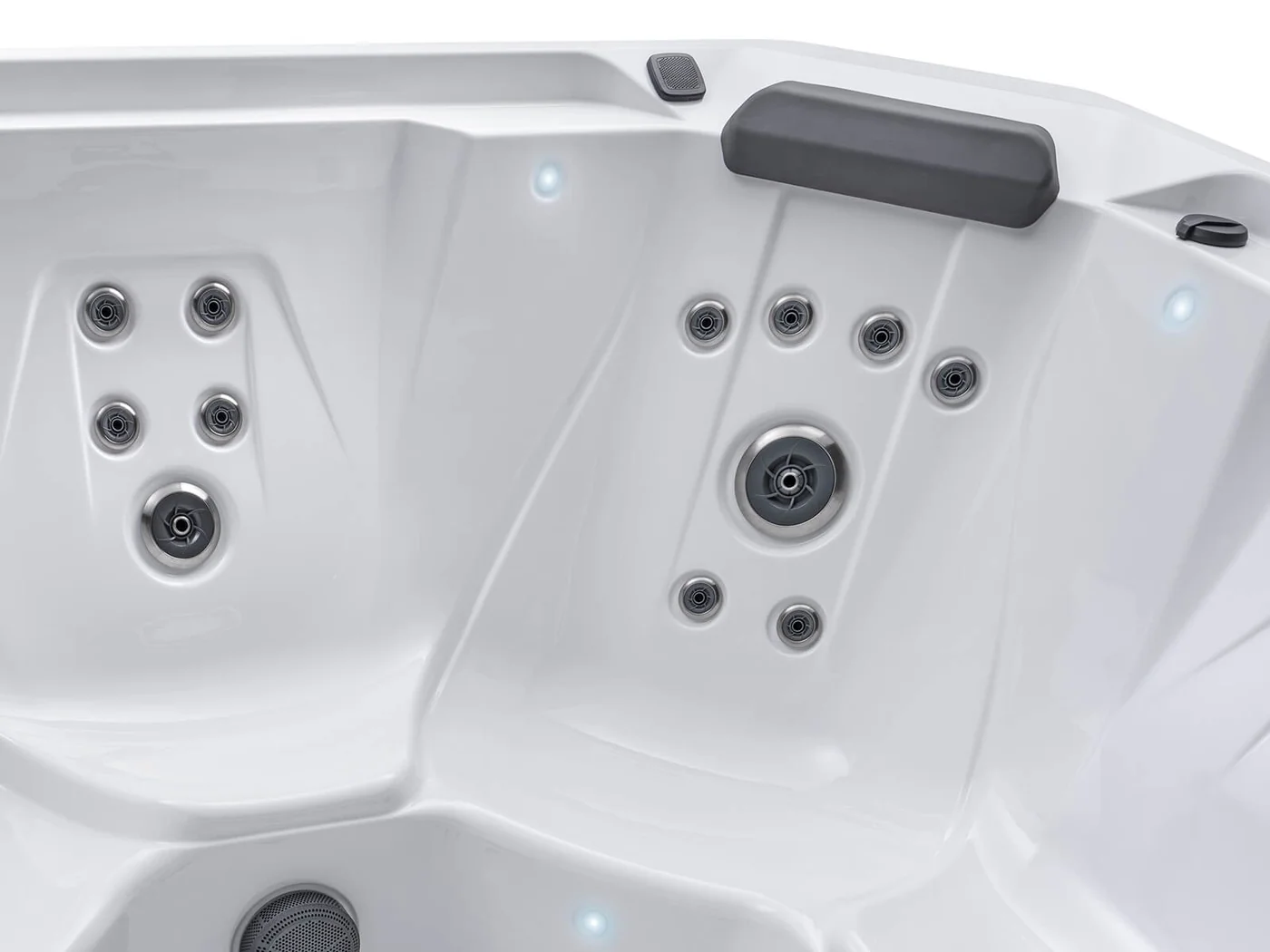

COMPLETE HYDROTHERAPY EXPERIENCE Every aspect of your spa is precision engineered to deliver the ultimate massage experience. Ergonomically designed shells are shaped to fit the body’s contours and position you to make the most of our legendary Hot Spring hydromassage systems. You’ll emerge energized and inspired – ready to be your best.
COMPLETE HYDROTHERAPY EXPERIENCE Every aspect of your spa is precision engineered to deliver the ultimate massage experience. Ergonomically designed shells are shaped to fit the body’s contours and position you to make the most of our legendary Hot Spring hydromassage systems. You’ll emerge energized and inspired – ready to be your best.
Specifications
Primary Specs
| Seating Capacity | 6 Adult |

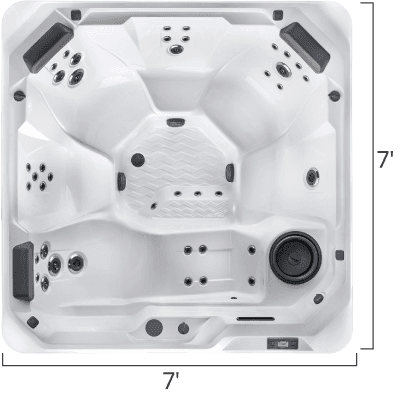

| Dimensions | 7’ x 7’ x 36”2.13 m x 2.13 m x 0.92 m |
| Water Capacity | 340 gallons / 1,290 liters |
| Weight | 830 lbs. / 375 kg dry; 4,715 lbs. / 2,140 kg filled* |
| Jets | 403 XL Directional Hydromassage jets2 XL Rotary Hydromassage jets3 Directional Hydromassage jets2 Rotary Hydromassage jets30 Directional Precision® jets |
| Water Care System | FreshWater® Salt System Ready |
| Seating | Lounge |
Additional Specs
| Water Feature | Included |
| Jet Pump 1 | Wavemaster® 6200; Two-speed,1.5 HP Continuous Duty,3.2 HP Breakdown Torque |
| Jet Pump 2 | Wavemaster® 6000; One-speed,1.5 HP Continuous Duty,3.2 HP Breakdown Torque |
| Circulation Pump | SilentFlo 5000® |
| Floor Drain | Included |
| Control System | IQ 2020® 230 V 50 amp, 60 Hz(Includes G.F.C.I. protected sub-panel) |
| Lighting – Interior | 10 multi-color LED points of light, dimmable |
| Lighting – Exterior | 4 multi-color LED points of light, dimmable |
| Heater | No-Fault® 4,000 W 230 V |
| Energy Efficiency | FiberCor® Insulation; Certified to CaliforniaEnergy Commission (CEC) and APSP 14energy efficiency standards for portable spas |
| Smart Spa Technology | Hot Spring Spas App, powered by the Connected Spa Kit |
| Effective Filtration Area | 65 sq. ft., top loading |
| Vinyl Cover | 3.5" to 2.5" tapered2 lb. density foam core Nutmeg or Stone |
| Cover Lifter (Optional) | CoverCradle®, CoverCradle II, or UpRite®, Lift ‘N Glide® |
| Steps (Optional) | Hot Spot Collection Step (Almond, Havana,and Storm), Polymer Step (Ash) |
| Entertainment (Optional) | Wireless Sound System |
| Voltage | 230 |
<p>* Includes water and 6 adults weighing 175 lbs. each. Export models available in 240v, 50Hz, 2000w heater</p>
Accessories & Extras
Enhance your spa experience with these accessories

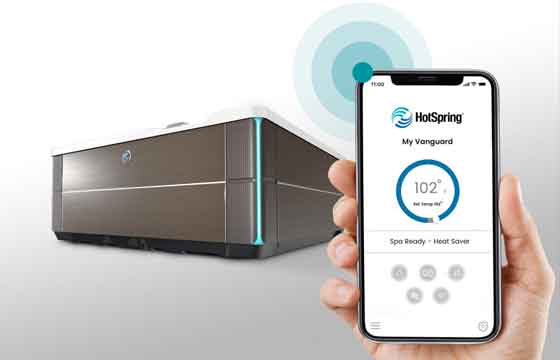

Hot Spring® Smart Spa Technology
The Hot Spring Spas App, powered by the Connected Spa Kit allows you to control and monitor your spa from home or on the go.

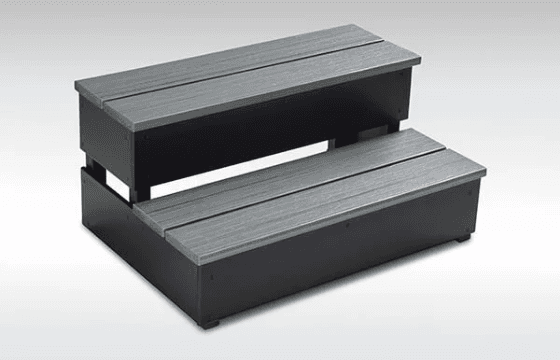

Hot Spring® Spa Steps
Spa steps make it easier to get in and out of your hot tub and are available in a variety of options designed to match your Hot Spring hot tub.

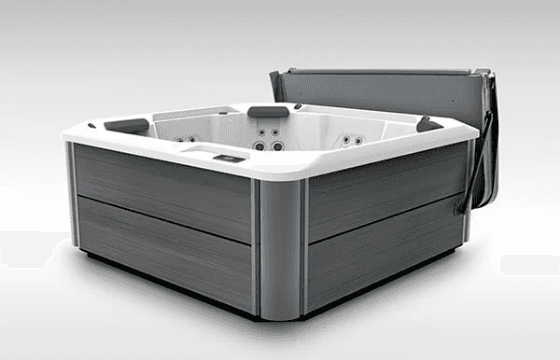

Hot Spring® Cover Lifters
With options to fit your needs and space, our patented cover lifters make opening and closing the spa cover simple, helping maintain your hot tub and extending the life of your cover.

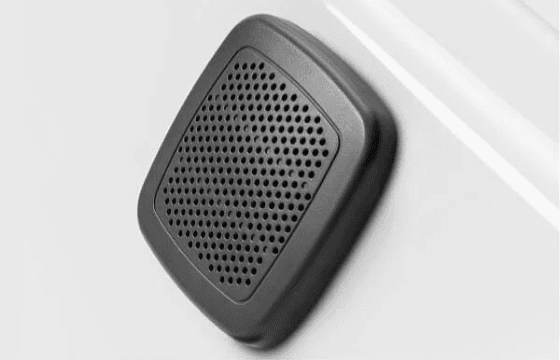

Hot Spring® Entertainment
Enhance your spa experience with our easy-to-use system featuring Bluetooth.
