E-Series (Hydrodrive)
E500
The Perfect Introduction to Hydrodrive Swimming
Starting at $32,000 MSRP
or as low as $662/mo with financing
Dimensions
15' L x 58" H x 89" W
Water Capacity
1,770 gal
Dry Weight
2,905 lbs
Jets
27
The E500 is the most accessible way to experience Endless Pools' patented Hydrodrive current — the smoothest, most swim-realistic current in the industry.
Compact enough for most backyards, powerful enough for serious swimmers. 5,000 gallons per minute of laminar flow with 138 speed settings.
Based on 120+ Google Reviews
See the E500 in Action
Watch Endless Pools' patented Hydrodrive technology create the smoothest swim current in the industry — 5,000 gallons per minute of laminar flow.
Why the E500?
Serious Swimming
138 speed settings take you from a casual warm-up to a competitive 0:51/100y pace. The Hydrodrive current is wide enough for a natural stroke — no fighting turbulence.
Fitness & Recovery
Built-in hydrotherapy jets and spa seats let you cool down after a swim. Add the optional underwater treadmill for low-impact running and rehab.
Relaxation
When you're not swimming, it's a hot tub. LED lighting, massage jets, and warm water make this the best seat in the backyard — year-round.
Customize Your E500
Choose your shell and cabinet colors
Shell Color
Alpine White
Cabinet Color
Gray
Features & Technology

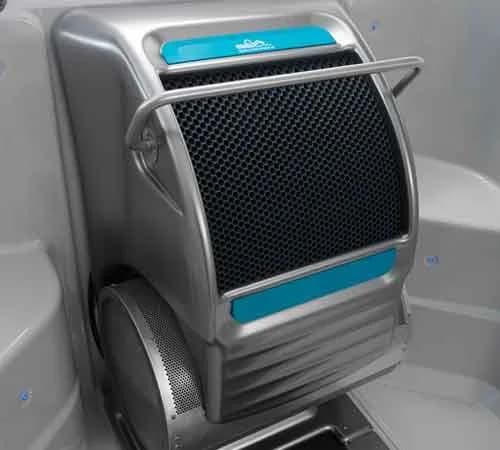

The E500 features Endless Pools' patented Hydrodrive propulsion — a custom-made, hydraulically powered system that generates up to 5,000 gallons per minute of smooth, laminar current. Unlike jet-based systems, the Hydrodrive current is wider than your body and deeper than your stroke for a natural open-water swimming experience.
116 Pace Settings
Dial in your perfect pace from a gentle 5:00 per 100 yards to a competitive 1:08 per 100 yards. The 5 HP Hydraulic Power Unit adjusts in precise increments, and you can change speed on the fly with an individual remote control.
Laminar Flow Technology
Multiple conditioning grills smooth and redirect the water before it reaches you, eliminating turbulence entirely. No air injection, no choppy waves — just a wide, deep column of water that lets you swim with proper form and natural breathing rhythm.

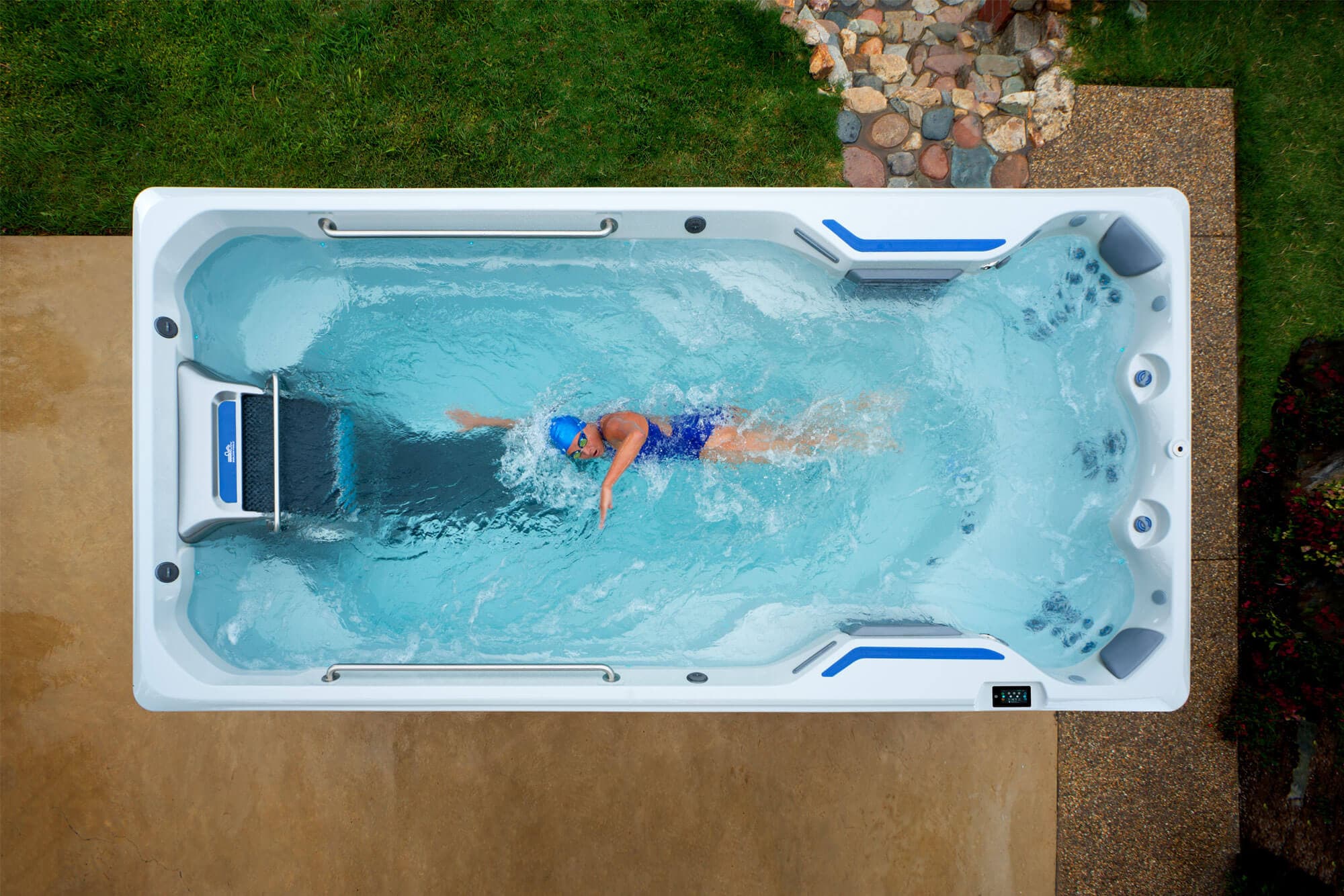

15-Foot Swim Lane
With 15 feet of dedicated swimming space and a swim well depth of up to 58 inches, you have room to settle into your stroke and maintain consistent form. Swim continuously without flip turns — just you and an endless current.

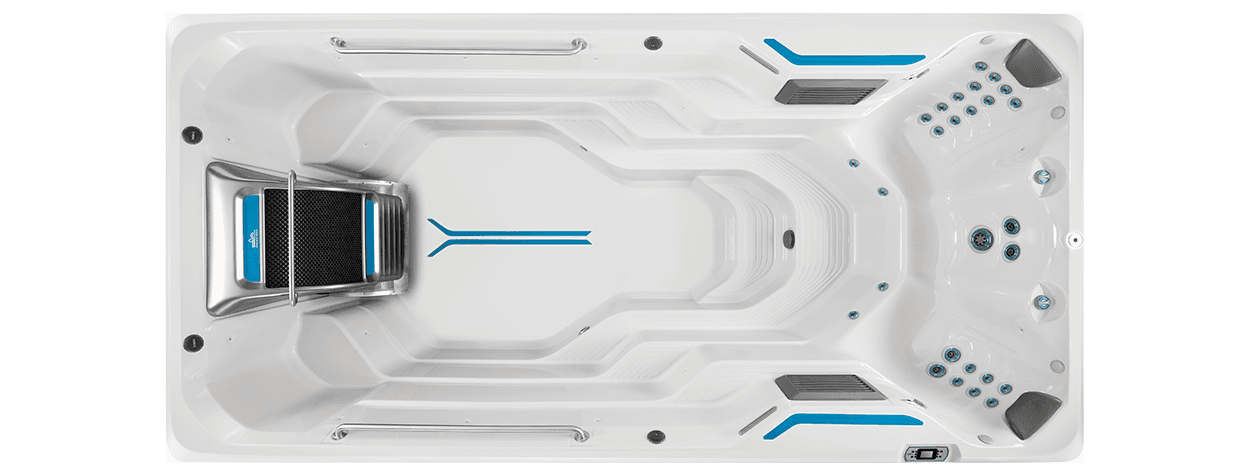

Specifications
58" Swim & Tread
| Dimensions | 15′ L X 58″ H X 89″ W |
| Water Capacity | 1,735 gal |
| Dry Weight | 3,030 lbs. |
| Filled Weight | 19,235 lbs. |
58" Swim
| Dimensions | 15′ L X 58″ H X 89″ W |
| Water Capacity | 1,770 gal |
| Dry Weight | 2,905 lbs. |
| Filled Weight | 19,400 lbs. |
E500 Specifications
| Overall Dimensions | 15' L x 58" H x 89" W |
| Acrylic Shell Color | Alpine White or Ice Gray |
| Capacity | 1,770 gal. or 1,735 (w/treadmill) |
| Weight Empty | 2,905 lbs. or 3,365 lbs. (w/treadmill) |
| Cabinet Color | Dark Mocha or Gray Oak |
| Lighting System | 18 Multi-Color LED Points of Light and Exterior LED Light Bar |
| Current Type | Hydrodrive™ Technology |
| Water Feature | 2 Illuminated Waterfalls |
| Heater | 4000 watt |
| Treadmill | Optional |
| Water Purification | UVC + CD Ozone |
| Hydromassage Seats | 3 |
| Exercise Equipment Options | Underwater Treadmill, Aquabike, Swim Tether, Rowing Kit, Resistance Bands, and Floor Mirror |
| Electrical Requirements | 230v/60amp, 60 Hz (includes GFCI sub-panel) |
| Hydromassage Jets | 27 (1 large, 2 rotary, 2 directional, 22 mini) |
| Grab Rails | 3, Stainless Steel |
<p>Endless Pools Surface Kits, Endless Pools Fit@Home® Wifi Kit & Mobile App, Gecko® In.Touch 2 & Mobile App, and 4-Tier Step</p>
Accessories & Extras
Enhance your spa experience with these accessories

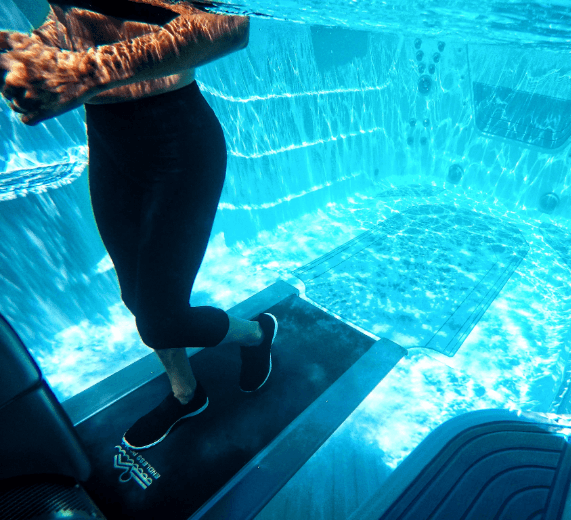

Underwater Treadmill
Available for E-Series models only. Optional – yet essential – the Endless™ Pools hydraulically powered underwater treadmill offers low-impact running and walking options for all of the cardiovascular benefits of exertion without the negative side effects often felt with land-based exercise. Vary the treadmill speed for gentle walking or an invigorating run.
Endless Pools Fit@Home® Wifi
Available for E-Series models only. Put full workout functionality at your fingertips! With the Fit@Home App you can adjust the speed controls, monitor workout pace, duration and time, and set up workout programs specific to your goals from your smartphone or tablet.
Aqua Bike
Get an effective workout without strain on your muscles and joints with this lightweight, yet stable, stationary Aqua Bike. Weighing just 21 lbs., the Aqua Bike is ideal for low to medium-intensity workouts. Position the Aqua Bike in front of the swim current for a more challenging ride.
