R-Series (RecSport)
R500
More Room for Family Fun
Starting at $22,000 MSRP
or as low as $455/mo with financing

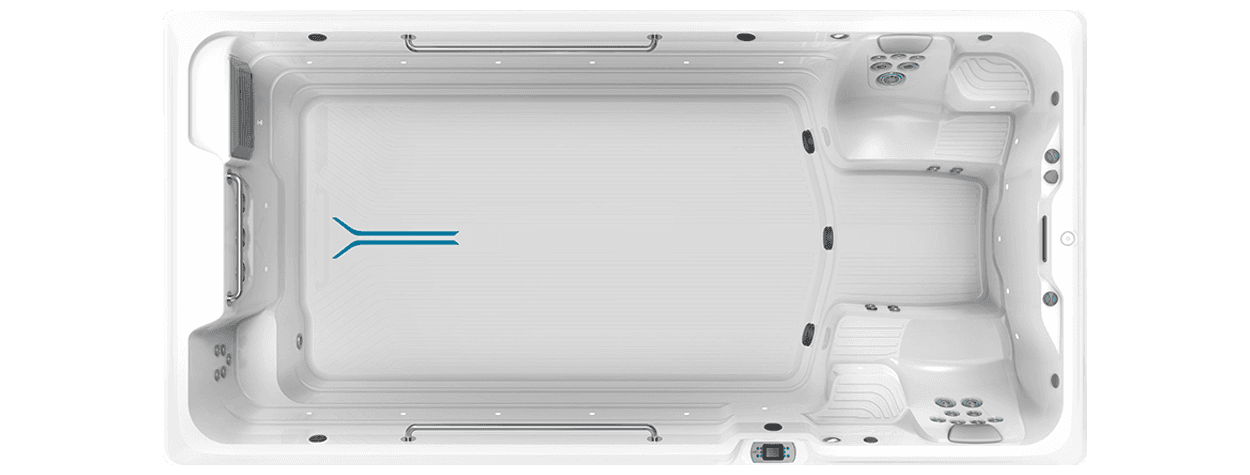

Dimensions
15' L x 50" H x 89" W
Water Capacity
1,785 gal
Dry Weight
2,055 lbs
Jets
27
The R500 offers more space than the R200 — a larger recreation-focused swim spa for bigger families or those who want more room to move. Same great value, more room to enjoy.
Based on 120+ Google Reviews
See the R500 in Action
The R500 gives you more room to move — a larger recreation swim spa for bigger families who want space for everyone without breaking the bank.
Why the R500?
Family Fun
15 feet of space means room for the whole family. Adjustable current works for kids learning to swim and adults getting a workout — at the same time.
Exercise
More swim lane than the R200 gives you room to stretch out. Adjustable resistance is great for swimming laps, water jogging, and aquatic fitness.
Relaxation
Built-in spa seats with hydrotherapy jets, LED lighting, and the option to heat it like a hot tub. The R500 works as hard — or as easy — as you want it to.
Customize Your R500
Choose your shell and cabinet colors
Shell Color
Alpine White
Cabinet Color
Gray
Features & Technology
The R500 features a RecSport current system with 3 airless linear swim jets delivering up to 215 gallons per minute. Using the Venturi effect to draw in additional water, the jets create a smooth, adjustable current with minimal turbulence — ideal for recreational swimming, water walking, and aquatic exercise.
3 Airless Linear Swim Jets
The RecSport system uses three airless jets that multiply water volume through the Venturi effect — no air bubbles means less turbulence and a more comfortable experience for swimmers of all ages. The 2.5 HP dual-speed pump provides reliable, adjustable power.
Adjustable for All Ages
Turn the current down for the kids and up for your workout. The dual-speed system makes it easy to switch between gentle play mode and a challenging aquatic exercise session, all controlled from the LCD panel.

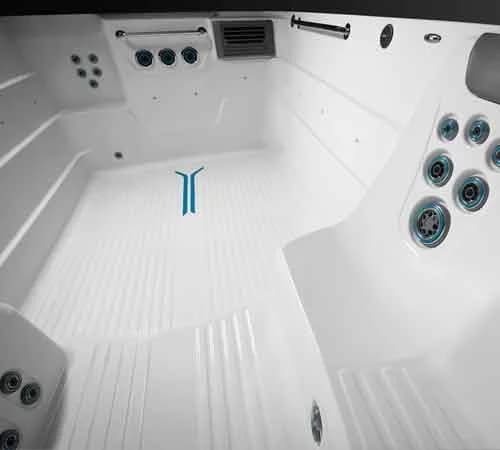

15-Foot Design with 30" Reef Area
The R500 includes a unique 30-inch deep shallow "reef" area — perfect for children's play, wading, and family gathering. The rest of the swim lane provides deeper water for exercise and swimming. At 15 feet, it fits backyards where a full-size pool won't.
Specifications
Compare Specs
| Dimensions | 15' L x 50" H x 89" W |
| Water Capacity | 1,785 gal. |
| Dry Weight | 2,055 lbs. |
| Filled Weight | 18,675 lbs. |
R500 Specifications
| Overall Dimensions | 15' L x 50" H x 89" W |
| Acrylic Shell Color | Alpine White or Ice Gray |
| Capacity | 1,785 gal. |
| Weight Empty | 2,055 lbs. |
| Cabinet Color | Mocha or Gray |
| Lighting System | 24 Multi-Color Points of Light |
| Current Type | 3 Round Swim Jets |
| Water Feature | 1 Illuminated Waterfall |
| Heater | 4000 watt |
| Water Purification | CD Ozone |
| Seats | 5 |
| Electrical Requirements | 230v/30amp; 230v/60amp (optional), includes GFCI sub-panel |
| Exercise Equipment Options | Aquabike, Swim Tether, Resistance Bands, Floor Mirror |
| Hydromassage Jets | 27 (1 large, 2 rotary, 2 directional, 22 mini) |
| Grab Rails | 3, Stainless Steel |
<p>Bluetooth®-Enabled Sound System, Endless Pools Surface Kits, Gecko® In.Touch 2 & Mobile App, Exterior LED Lighting, and 4-Tier Step</p>
Accessories & Extras
Enhance your spa experience with these accessories

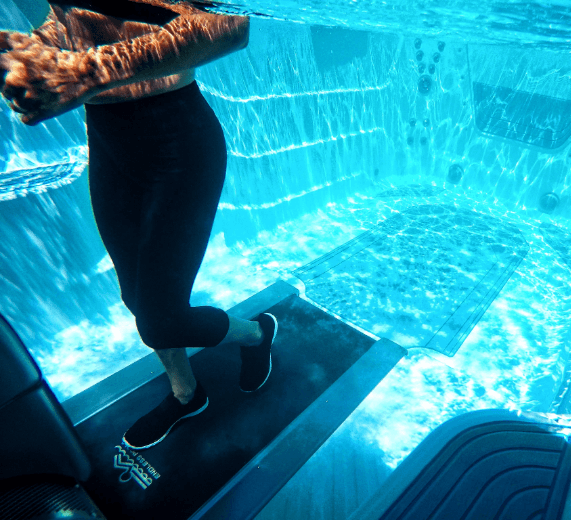

Underwater Treadmill
Available for E-Series models only. Optional – yet essential – the Endless™ Pools hydraulically powered underwater treadmill offers low-impact running and walking options for all of the cardiovascular benefits of exertion without the negative side effects often felt with land-based exercise. Vary the treadmill speed for gentle walking or an invigorating run.
Endless Pools Fit@Home® Wifi
Available for E-Series models only. Put full workout functionality at your fingertips! With the Fit@Home App you can adjust the speed controls, monitor workout pace, duration and time, and set up workout programs specific to your goals from your smartphone or tablet.
Aqua Bike
Get an effective workout without strain on your muscles and joints with this lightweight, yet stable, stationary Aqua Bike. Weighing just 21 lbs., the Aqua Bike is ideal for low to medium-intensity workouts. Position the Aqua Bike in front of the swim current for a more challenging ride.
